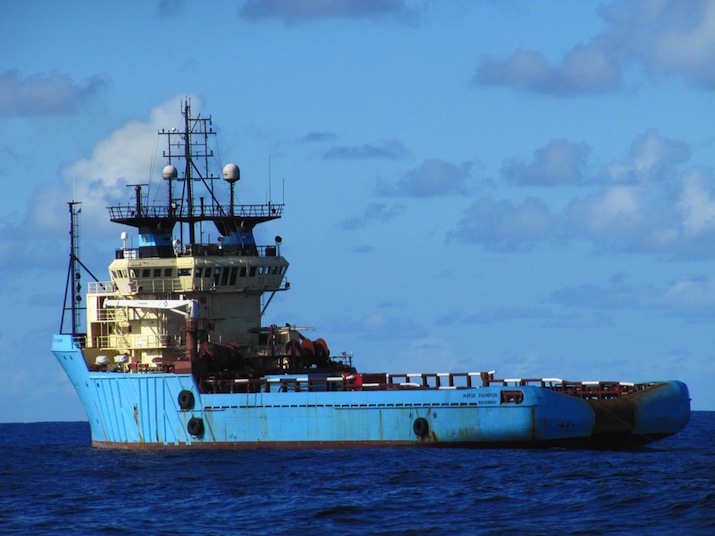

The VS476 Maersk Champion out in Brazil. Photo Tony Poll
The VS476 is obviously derived from the earlier anchor-handlers designed by Vik-Sandvik. Back in the mid 1980 when these ships entered service they were favoured for their very large deck area - at the time, and often went to work as platform ships. Four vessels were constructed by Orskov, and very early in their career were bareboated by OIL, but once the contract period was over they were bought by Maersk and are probably all still working (2016).
| TYPE: VS 476 |
NAME: Maersk Chancellor
|
PHOTO: George Craigen
|
 |
 |
 |
| GENERAL |
PROPULSION |
DECK EQUIP |
| Length OA |
76.4 m |
Engines |
4 x B&W Alpha |
Workdrum pull |
300t |
| Breadth |
17.61 m |
BHP |
14400 |
Capacity 1 |
1200m x 74mm |
| DWT |
2440 t |
kW |
10600 |
Capacity 2 |
|
| Deck area |
633 m2 |
For'd Thruster |
2 x 1200 bhp |
Towdrum pull |
350t |
| Fuel |
1398 m3 |
Az Thruster |
|
Capacity 1 |
1400m x 64mm |
| Pot water |
508 m3 |
Aft Thrusters |
1 x 1200 bhp |
Capacity 2 |
1400m x 64mm |
| Mud |
618 m3 |
Bollard pull |
160 tonnes |
Sharks Jaw |
|
| Base oil |
213 m3 |
DP |
|
Cranes |
|
| Brine |
619 m3 |
Joystick |
Robertson |
Tank Cleaning |
None |
| Dry bulk |
284m3 |
Year built |
1986 |
Shipyard |
Orskov |
| Former Names |
Kingshav, Oil Chancellor |
| Comments |
These vessels were all built at Orskov and spent some time bareboated to OIL, but at the end of the contract period they were purchased by Maersk.
|
|
